Freestyle Edge RGB Split Gaming Keyboard



by Kinesis Gaming

   Detailed Product Information       Image Gallery       Technical Specifications       Models       Accessories
Detailed Product Information







A new rEVOLUTION in Gaming Keyboard Design

The Feestyle Edge RGB Split Mechanical Gaming Keyboard from Kinesis Gaming is the nextgen version of the Freestyle Edge, adding fully addressable RGB lighting to this already advanced product. This highly advanced Mechanical Gaming Keyboard is built around the key concepts of Comfort, Control & Performance. Kinesis Gaming has combined their many years of experience in the development of advanced programmable mechanical keyboards with a proven ergonomic design that is enjoyed by tens of thousands of everyday computer users. The result is the FREESTYLE EDGE RGB Split Mechanical Gaming Keyboard that provides gamers of all levels with the advanced functionality that you demand and the freedom to choose your favourite type of Cherry MX mechanical keyswitch. Combined with this is the proven ergonomic design to aid you in avoiding potentially "game-ending" repetitive strain injuries (RSI).

Whether you are a casual or professional gamer the Freestyle Edge RGB Split Mechanical Gaming Keyboard has all the features that you are looking for. If you are a programmer or someone who requires programmable customization for special purposes, the Freestyle Edge is there for you as well. This keyboard may well provide you with the widest range of customization and control that you will ever need, regardless of your requirements.



Comfort





Compact, Tenkeyless Format


The symmetrical, compact design (achieved by eliminating the ten key numeric pad) reduces the reach for the mouse for both left- and right-handed users. The standard layout means that users can switch from their existing keyboard with ease - no relearning is necessary.









Variable Separation

The two modules of the Freestyle Edge RGB Gaming Keyboard can be separated up to 20" apart, a range which ensures comfort for everyone, including those with broad sholders. The range of adjustment will also accommodate the most creative of interface layouts. The length of the heavy duty braided joining cable is adjustable, with a convenient compartment in the left module for storage of the excess cable. This range of adjustment will also accommodate a wide range of innovative gaming layouts.






FREEDOM AND FLEXIBILITY
The options for positioning the Freestyle Edge RGB Split Gaming Keyboard are basically unlimited. When space is limited it can be used with the modules tight to each other but when space permits each user can position the modules at the spread and angle of splay that best suits their needs. Even when space is limited splaying the modules outwards offers a huge improvement in comfort. No longer do you need to bend your wrists to align with a straight keyboard, the Freestyle Edge adjusts to accommodate the most optimum position for comfortable and relaxed gaming.




Get the Angle! Find Relief
There are two "Tenting" accessory options available for the Freestyle Edge RGB Gaming Keyboard. The first is the Lift Kit which attaches to the Keyboard and Palm supports and provides the 5°, 10° and 15° tenting (with the palm supports in place. The second accessory is the Freestyle V3 Pro Accessory Kit which can be used when the palm supports are detached. It attaches directly to the keyboard and offers the same 5°, 10° and 15° degrees of tenting (without palm supports).

The 3 tenting angles orient the forearm and wrist towards a neutral position that greatly decreases the risk of developing injuries that will take you out of the game. Being able to optimize your comfort also means less fatigue during intense and lengthy gaming sessions. Once you find your angle flat keyboards will be off your radar for good.





Detachable Palm Supports!
The Freestyle Edge RGB ships with detachable palm supports. The well-padded surfaces let the hands slide with minimal effort and are easily cleaned.




Control


Fully Programmable
The Freestyle Edge RGB Gaming Keyboard can be fully reprogrammed for custom applications. The on-board memory is capable of storing 9 dual-layer (95 keys per layer) fully programmed layouts (effectively 18 custom layers). The 4-key "Programming Cluster" is located at the top of the righthand keyboard module. The LAYOUT key provides quick access to the 3 primary layouts (1, 2, and 3), the MACRO key controls the on-the-fly Macro recording, and the REMAP key controls the onboard remapping. The 4th key is the SMARTSET key which controls all onboard programming shortcuts. The accompanying LEDs advise which primary layout is currently active, whether Macro programming is active (flashing), and whether Key Remapping is in progress. The SmartSet LED flashes to confirm specific programming commands.

Macro Programming
Each layout can store up to 24 macros and each macro can be up to 300 characters long. Macros can be assigned to trigger by a single key or by a 2-key combination. Nine playback speeds are available via the MACRO shorcut, ranging from 4 APS (actions per second) to a blazing 250 APS.

On-The-Fly Remapping
Key remapping is available directly from the keyboard and requires just 3 keystrokes (Remap Key, Source Key, Destination Key). All keys are remappable, even between the dual layers.

Multi OS Programming
The Freestyle Edge RGB Gaming Keyboard supports Windows, Mac OS X and Linux. Programming can easily be performed as Onboard Programming in all OS or Direct Programming - also in all OS. Windows and Mac users have the added option of using the SmartSet Programming App. SmartSet App for Windows or Mac users can be downloaded as desired.

On-Board Programming Engine
The Freestyle Edge features a 4MB on-board v-drive that retains all custom programming. This eliminates the need of installing programming software to the computer. However, all programming can still be done via the SmartSet APP if a GUI interface is desireable. Everything you need, without the bloatware. Now that’s what we call changing the game!




Performance


Premium CHERRY MX MECHANICAL Key Switches
The most important part of any gaming keyboard is the functionality of the keys. Regardless of what other performance features are available, if the keyswitches are not up to the demands of intense use and rapid response, the keyboard is a failure. This is not a concern with the Freestyle Edge. All models of the Freestyle Edge Gaming Keyboard are equipped with premium Cherry MX Mechanical Key Switches (click for feature comparison). The three options are: MX Blue (Tactile and Clicky), MX Red (Low Force & Linear), or MX Brown (Low Force & Tactile). Whatever your selection, these switches will offer performance-level activation and durability.

Fully Addressable RGB Backlighting
The laser etched keycaps feature brilliant RGB backlighting with 9 pre-programmed custom modes (each of the 9 available layouts is preprogrammed with a different mode). Keys can be individually programmed to any of the 16.8M colours. Custom lighting effects can be created a single key at a time for all nine of the available profiles. Pre-programmed lighting profiles include Monochrome, Wave, Spectrum, Breathe, Rain, Reactive, Loop, Pulse and Rebound. Backlighting can be switched off with a single keystroke and a Pitch Black Mode (all backlighting and static indicators disabled) is also available.

Updateable Firmware
The Freestyle Edge RGB Split Mechanical Keyboard is easily updated to take advantage of new features when new firmware becomes available.

Special Actions Option
There is a menu of non-standard "Special Actions" available for programming. These can be programmed either directly or through the SmartSet App. This includes Tap-and-Hold (available with installation of the most recent firmware update)

Full NKRO
The Freestyle Edge is equipped for FULL NKRO (n-key rollover) which is easily activated via the onboard shortcut. Once activated the NKRO mode remains active until the onboard v-drive is opened or the keyboard is unplugged.

Game Bank
A convenient set of 8 fully programmable keys are positioned on the left side of the lefthand module. Conveniently located for quick access, these keys are perfect for transferring right-side keys to the left hand to better accommodate left-hand only play.

Anti Ghosting
The Freestyle Edge offers 100% Anti-Ghosting. No matter how fast and intense the action, this keyboard will handle it.


Game Mode
Game mode disables all Windows keys actions to ensure that users are unable to accidentally exit games. Game mode remains active until turned off. The indicator LED remains lit while Game Mode is active.

4 MB Onboard Memory
All keyboard settings are stored in the 4 MB onboard v-drive. Your custom settings travel with the keyboard as does your ability to make instant changes.


MultiMedia Controls

Onboard MultiMedia controls are availabel via the FN layer.


1 ms Response Time
Lag is not an issue with the Freestyle Edge. The 1 ms response time will ensure that your input will make it on time.

Braided Cable
The Freestyle Edge Gaming Keyboard is equipped with heavy duty braided cables to ensure durability and performance.

Textured Keycap Kit Accessories
Gamers may wish to add one of the textured WASD and Arrow keycap kits that are available in five colours. These are laser etched to support the full RGB lighting effects.

Image Gallery (Click on any thumbnail to view larger image)

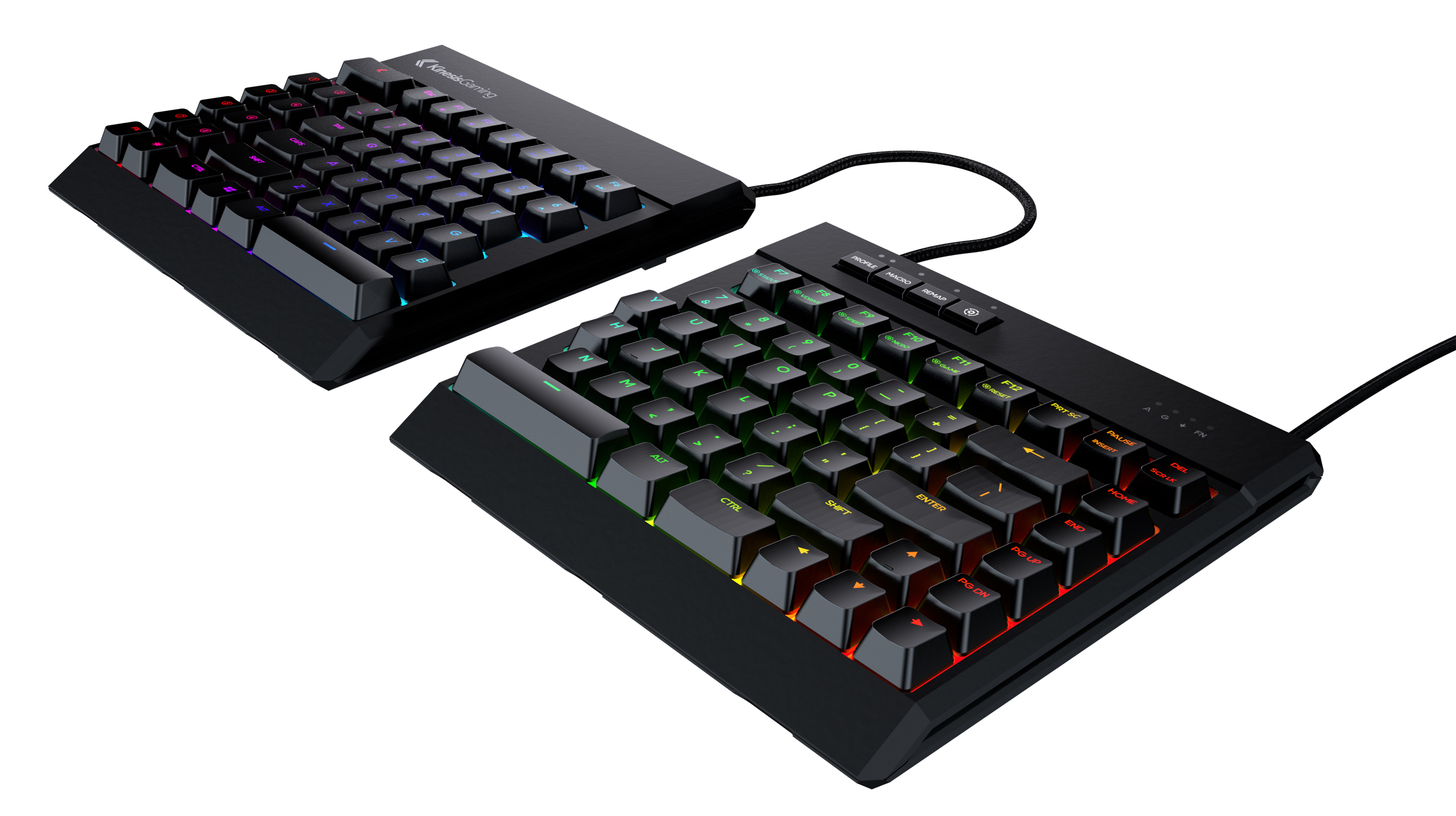

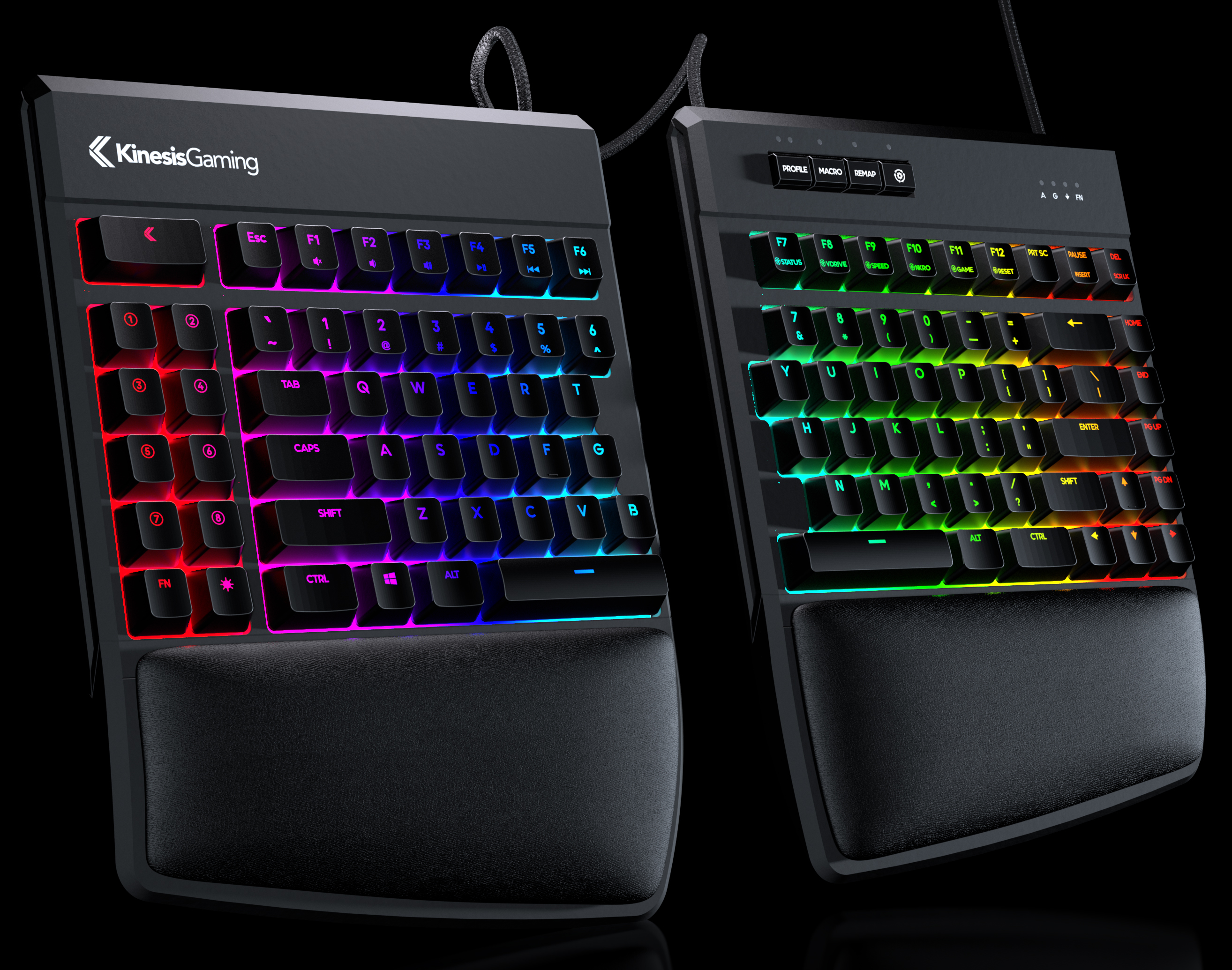

Freestyle Edge RGB Split Mechanical Gaming Keyboard
Freestyle Edge RGB Split Mechanical Gaming Keyboard

Freestyle Edge RGB - Palmrests Detached
Freestyle Edge RGB - Palmrests Detached

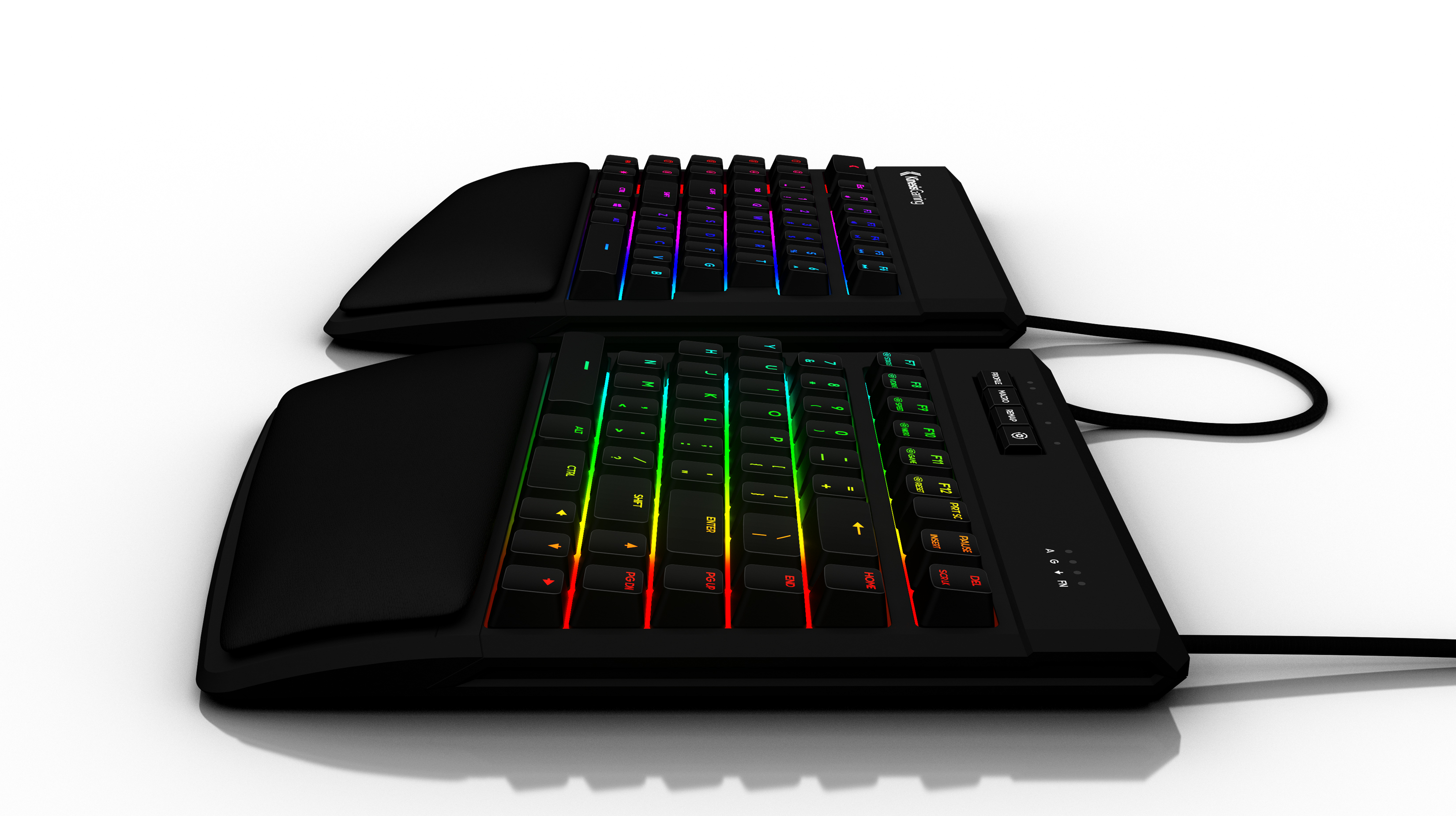

Freestyle Edge RGB - Side Profile
Freestyle Edge RGB - Side Profile

Freestyle Edge RGB - 5°, 10° and 15° angles with V3 Pro Accessory Kit
Freestyle Edge RGB - 5°, 10° and 15° angles with V3 Pro Accessory Kit

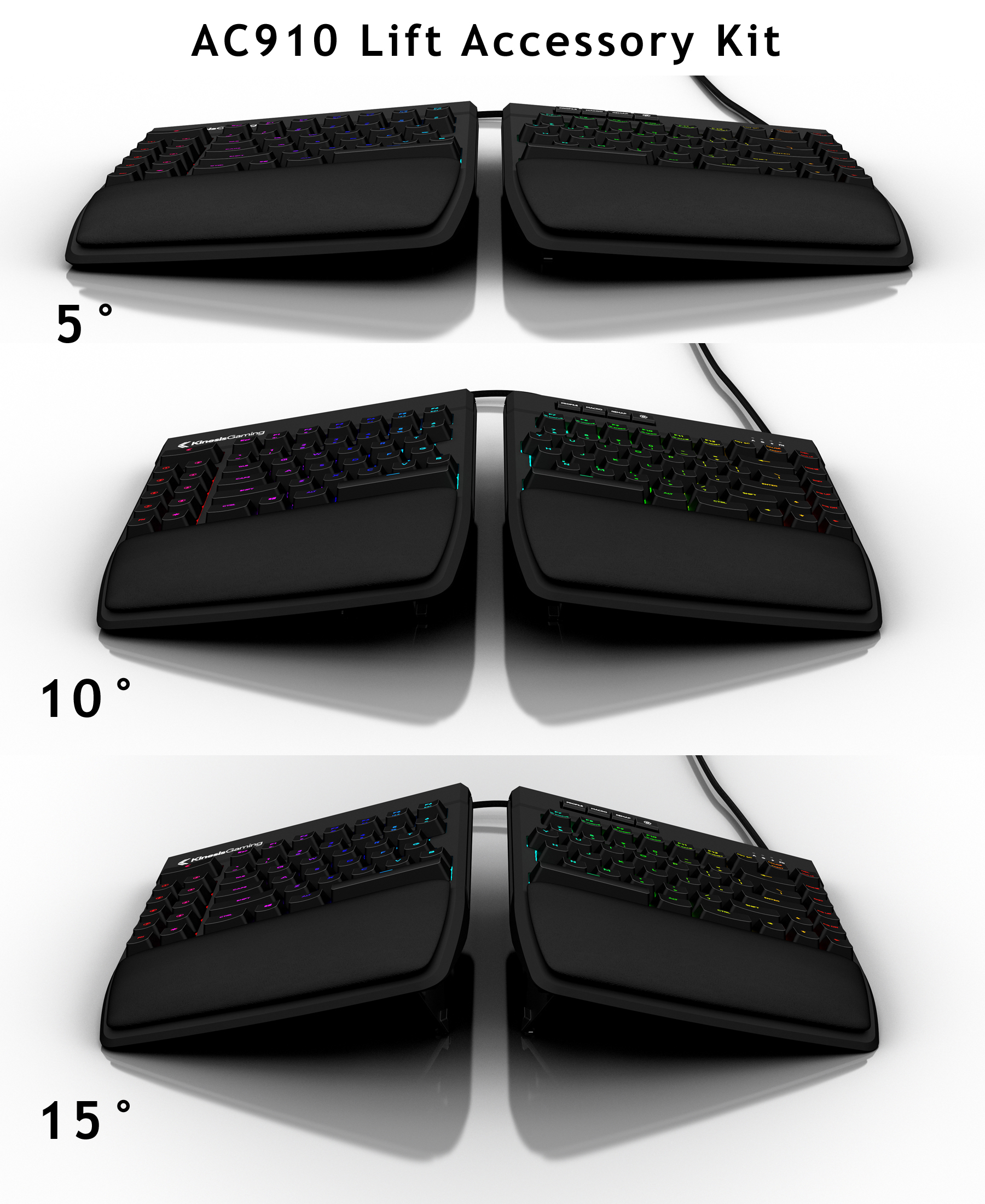

Freestyle Edge RGB - 5°, 10° and 15° angles with AC910 Lift Accessory Kit
Freestyle Edge RGB - 5°, 10° and 15° angles with AC910 Lift Accessory Kit

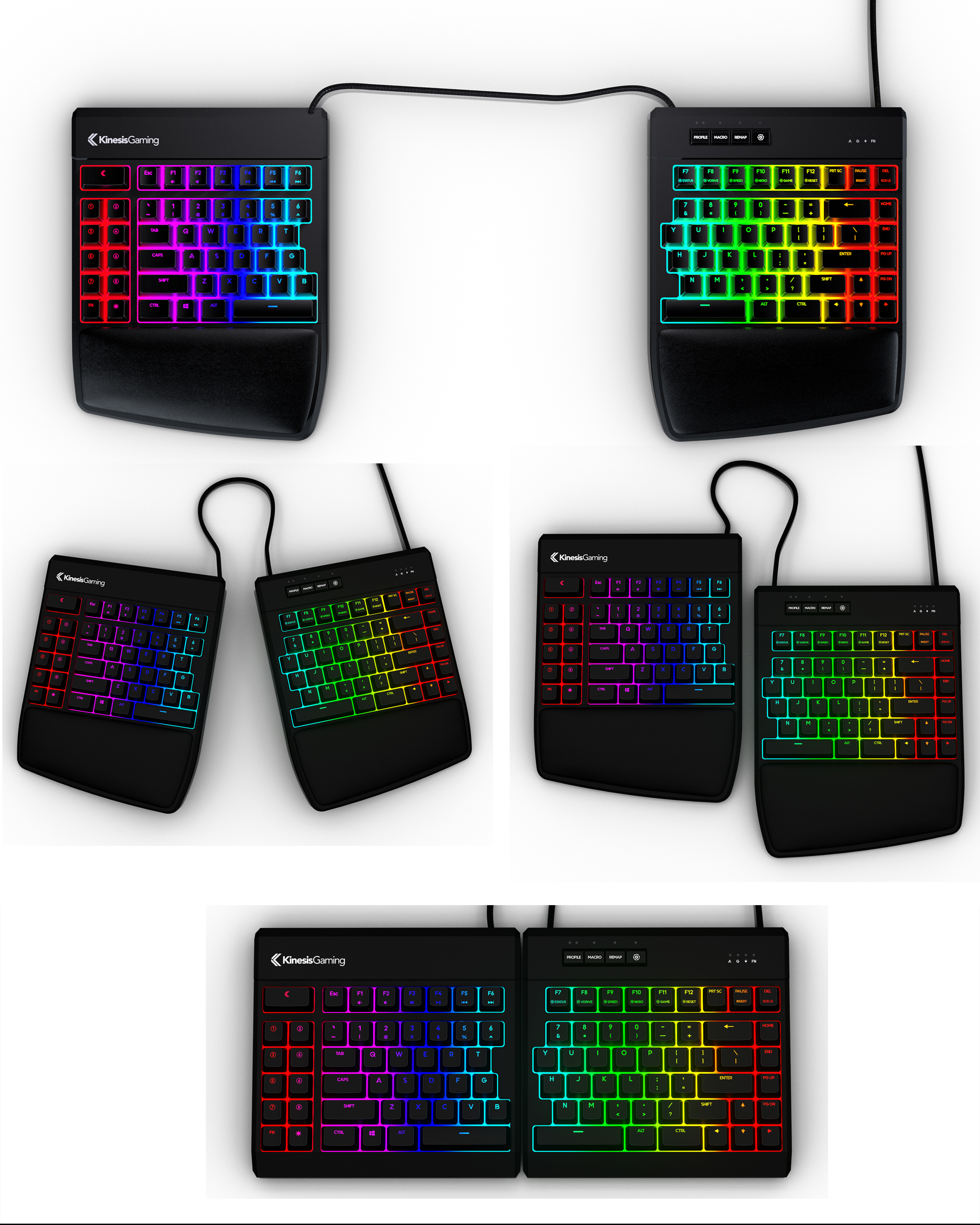

Freestyle Edge RGB - Innvovative Configurations Possible
Freestyle Edge RGB - Innvovative Configurations Possible

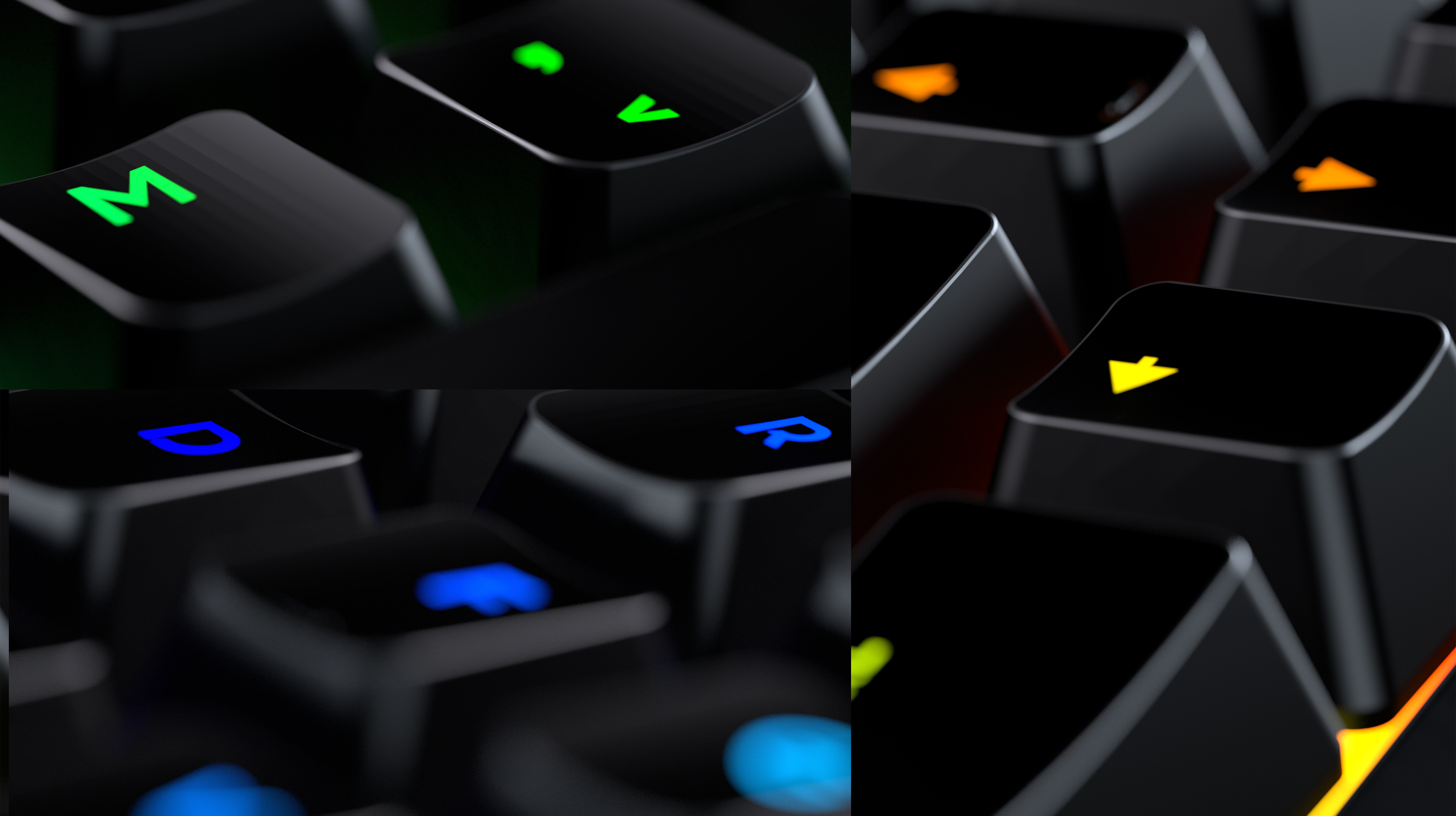

Freestyle Edge RGB - Key by Key Addressable
Freestyle Edge RGB - Key by Key Addressable

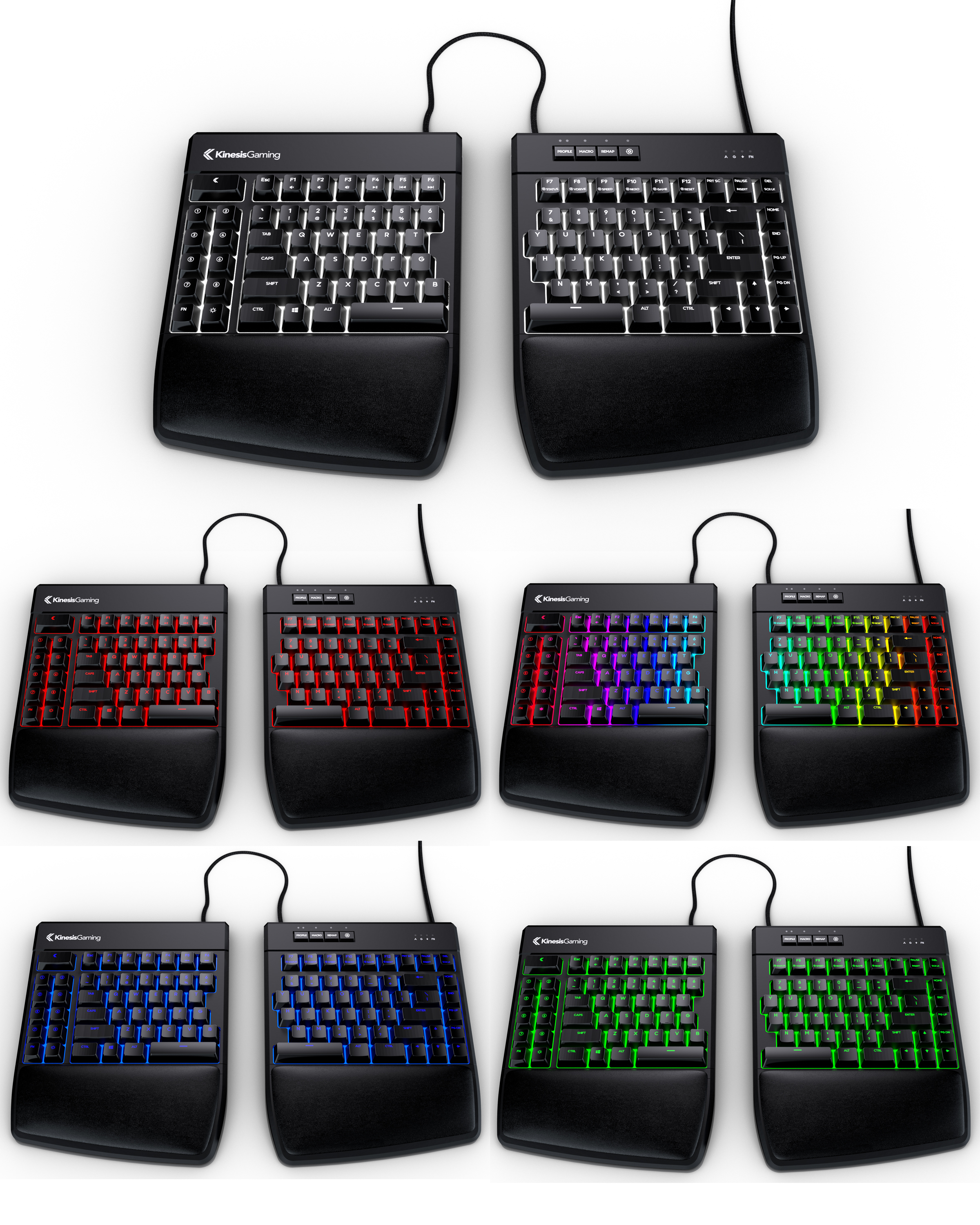

Freestyle Edge RGB - Custom Lighting
Freestyle Edge RGB - Custom Lighting

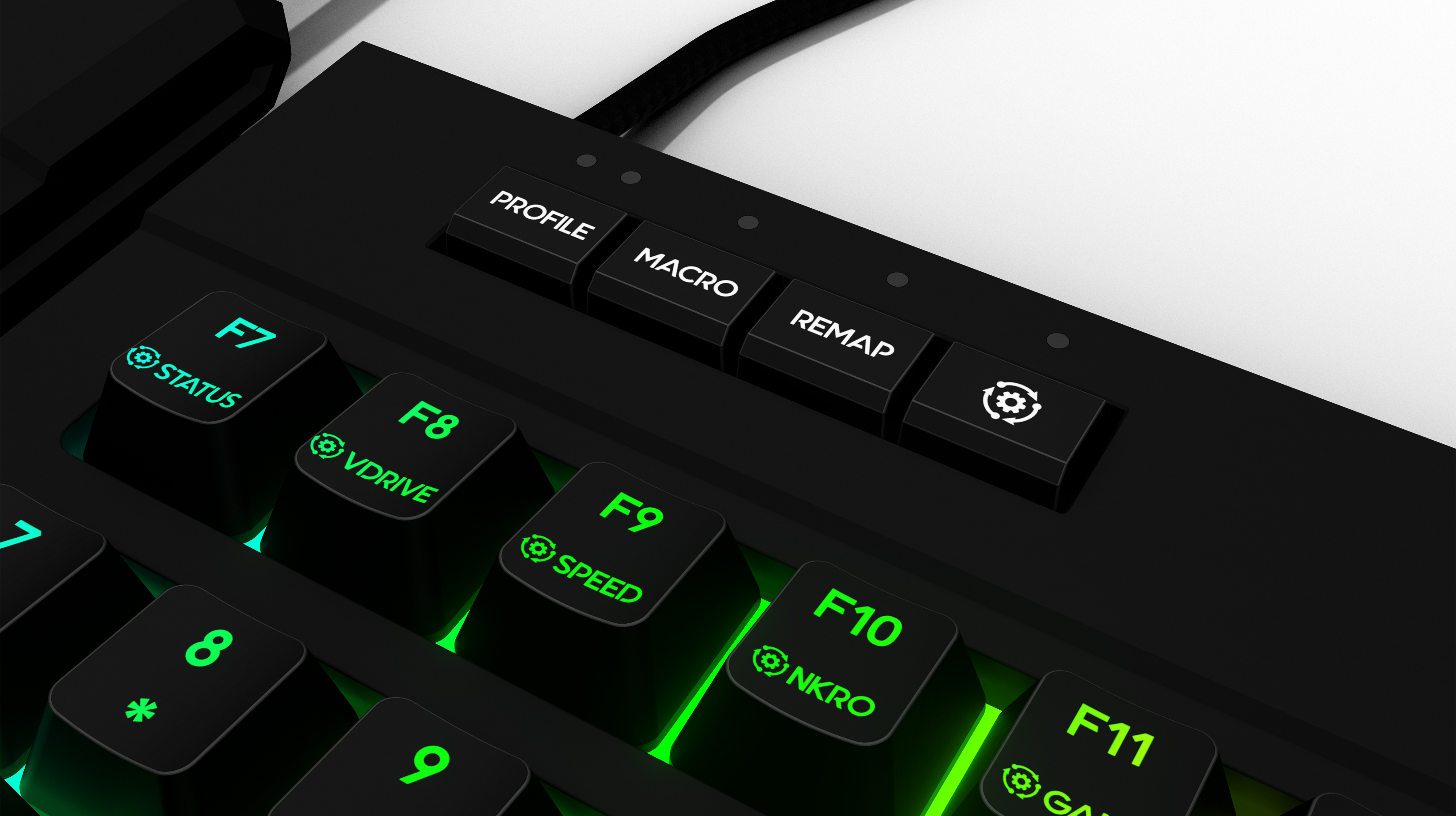

Freestyle Edge RGB - Onboard Programming
Freestyle Edge RGB - Onboard Programming

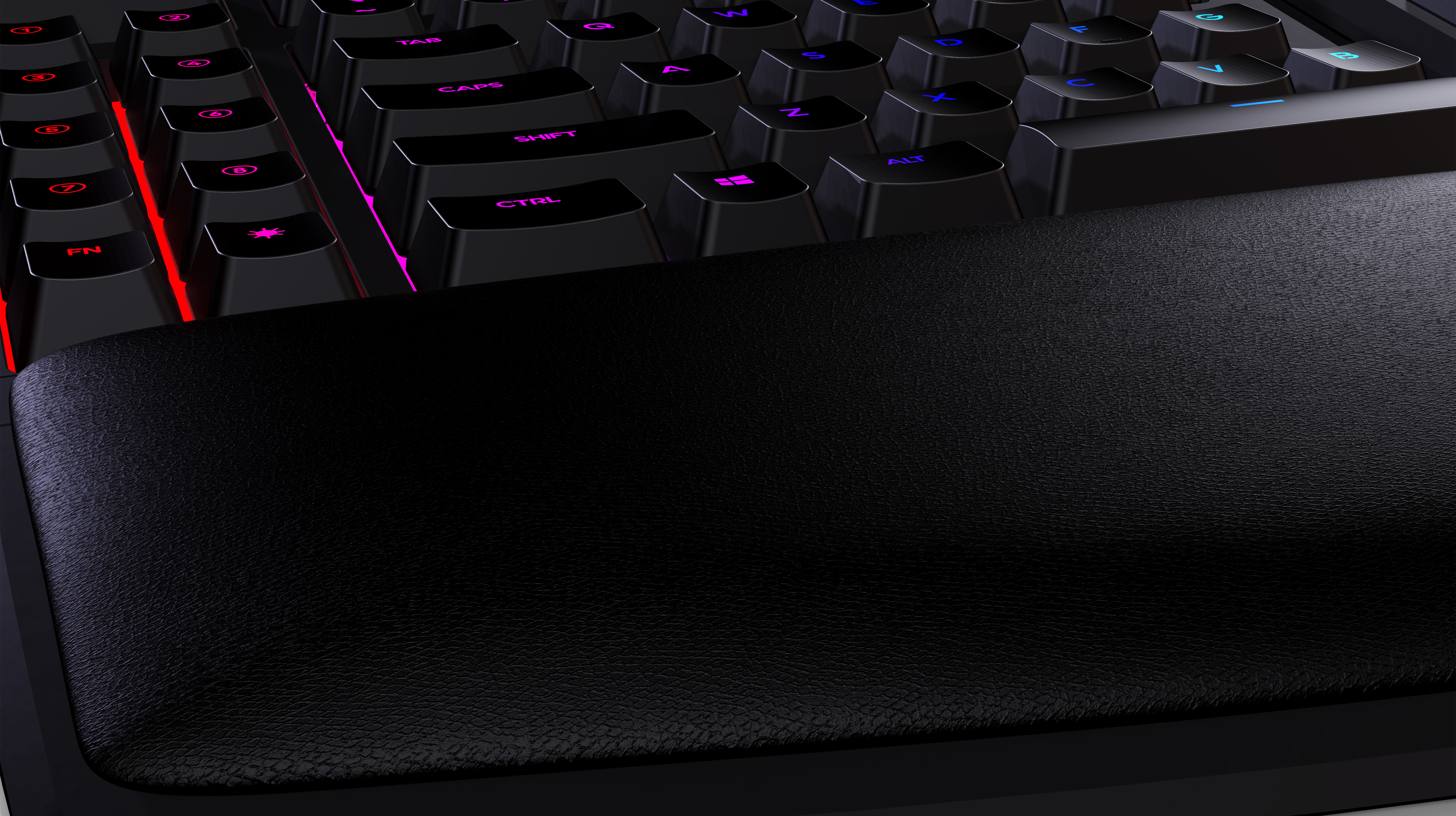

Freestyle Edge RGB - Easy Glide Cushioned Palm Supports
Freestyle Edge RGB - Easy Glide Cushioned Palm Supports

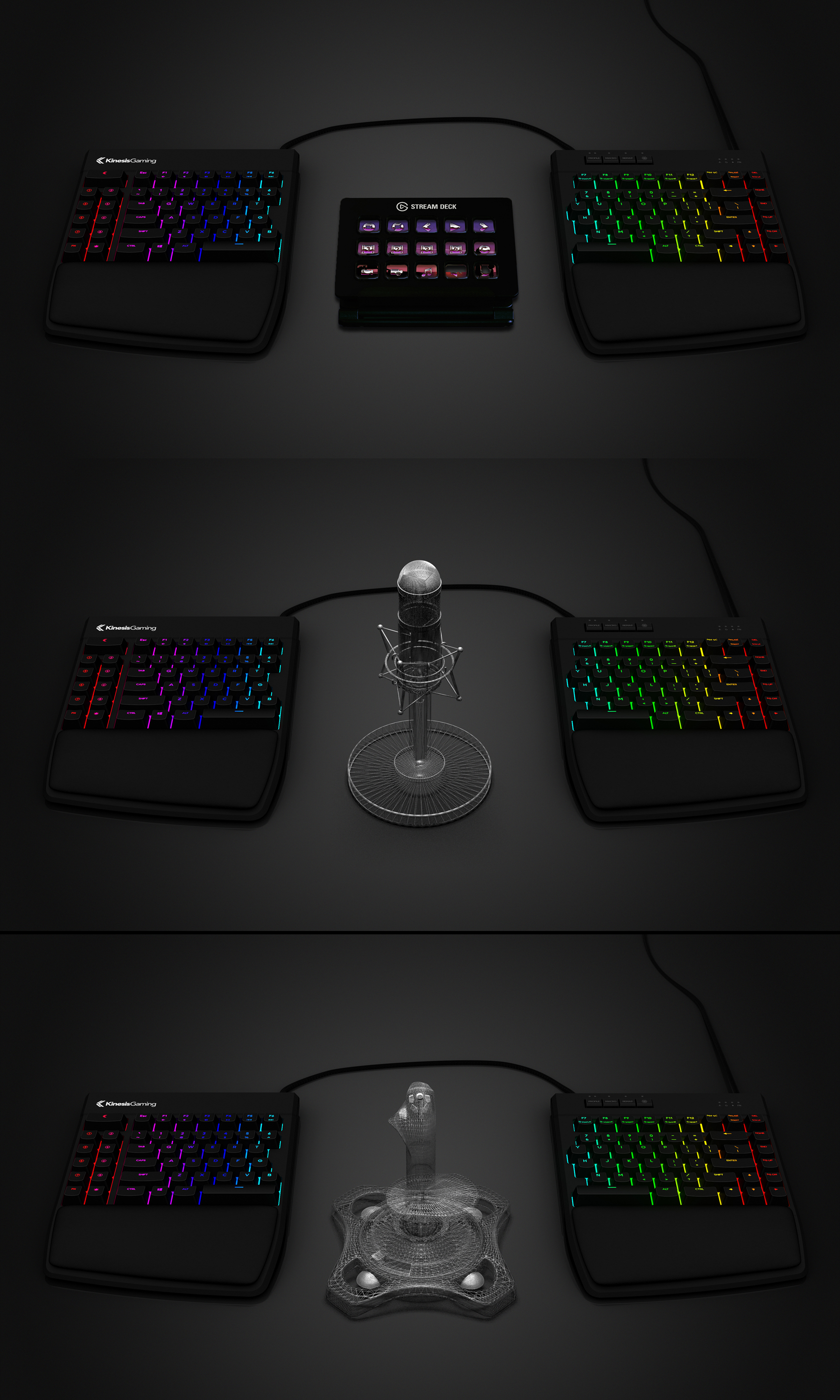

Freestyle Edge RGB - Facilitates Unique Game Control Layouts
Freestyle Edge RGB - Facilitates Unique Game Control Layouts

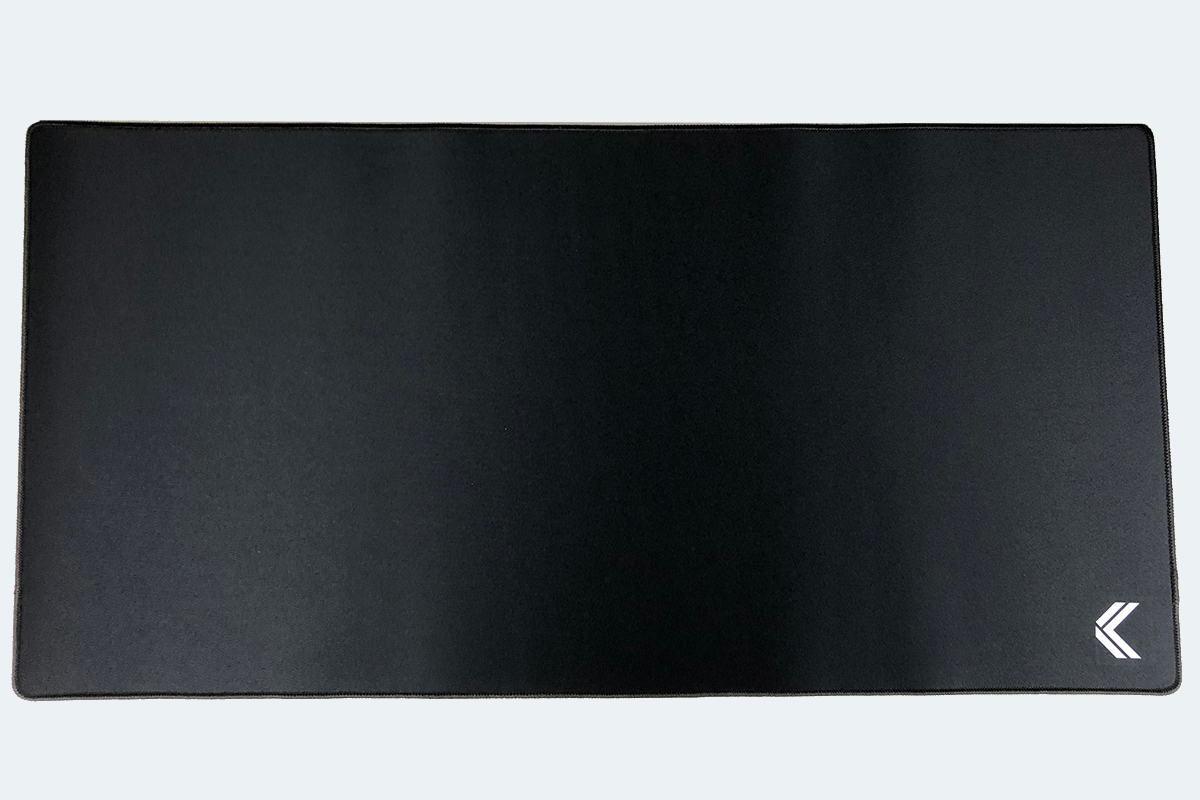

Kinesis XL Desk Mat
Kinesis XL Desk Mat

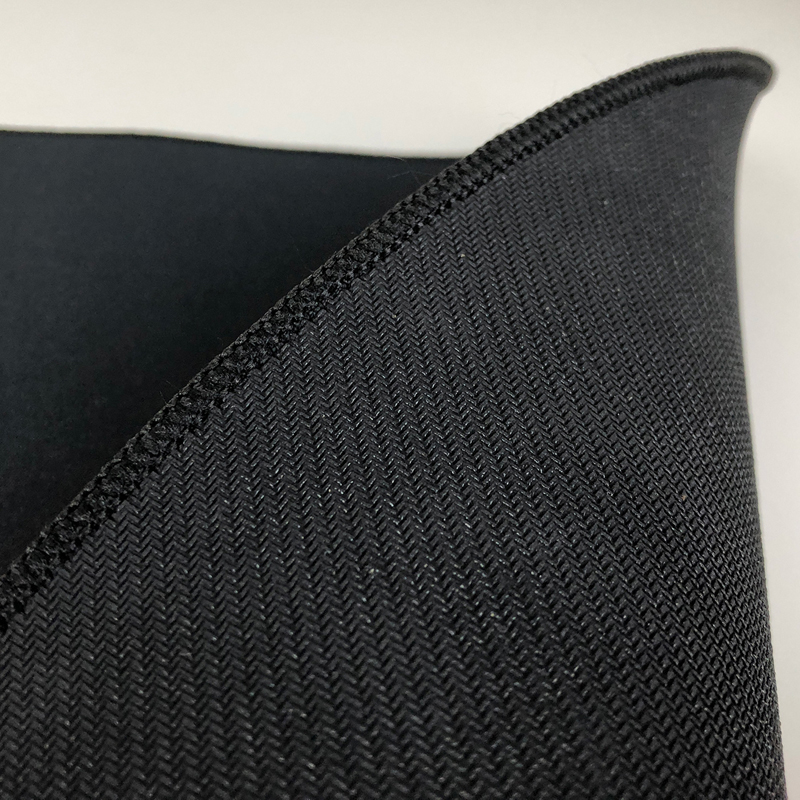

Kinesis XL Desk Mat - Non-Slip Backing
Kinesis XL Desk Mat - Non-Slip Backing

Freestyle Edge Textured Key Kit - 5 Colours
Freestyle Edge Textured Key Kit - 5 Colours

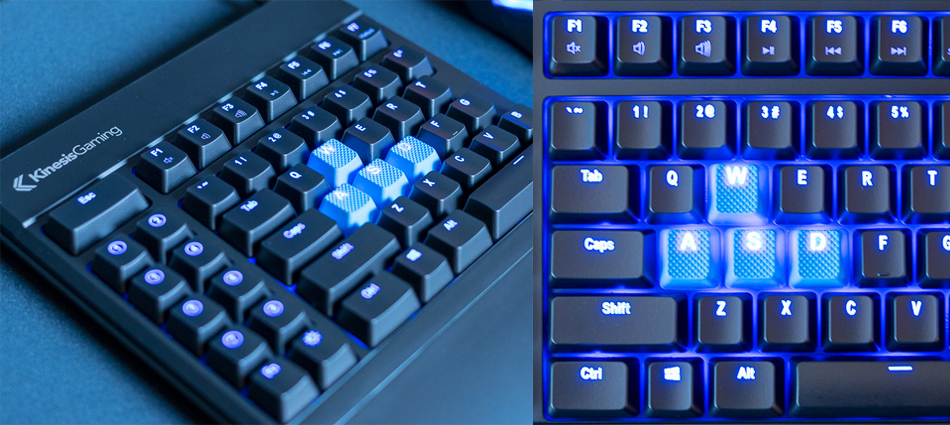

Freestyle Edge Textured Key Kit - Coloured and Back Lit
Freestyle Edge Textured Key Kit - Coloured and Back Lit

Freestyle Edge RGB Retail Packaging
Freestyle Edge RGB Retail Packaging

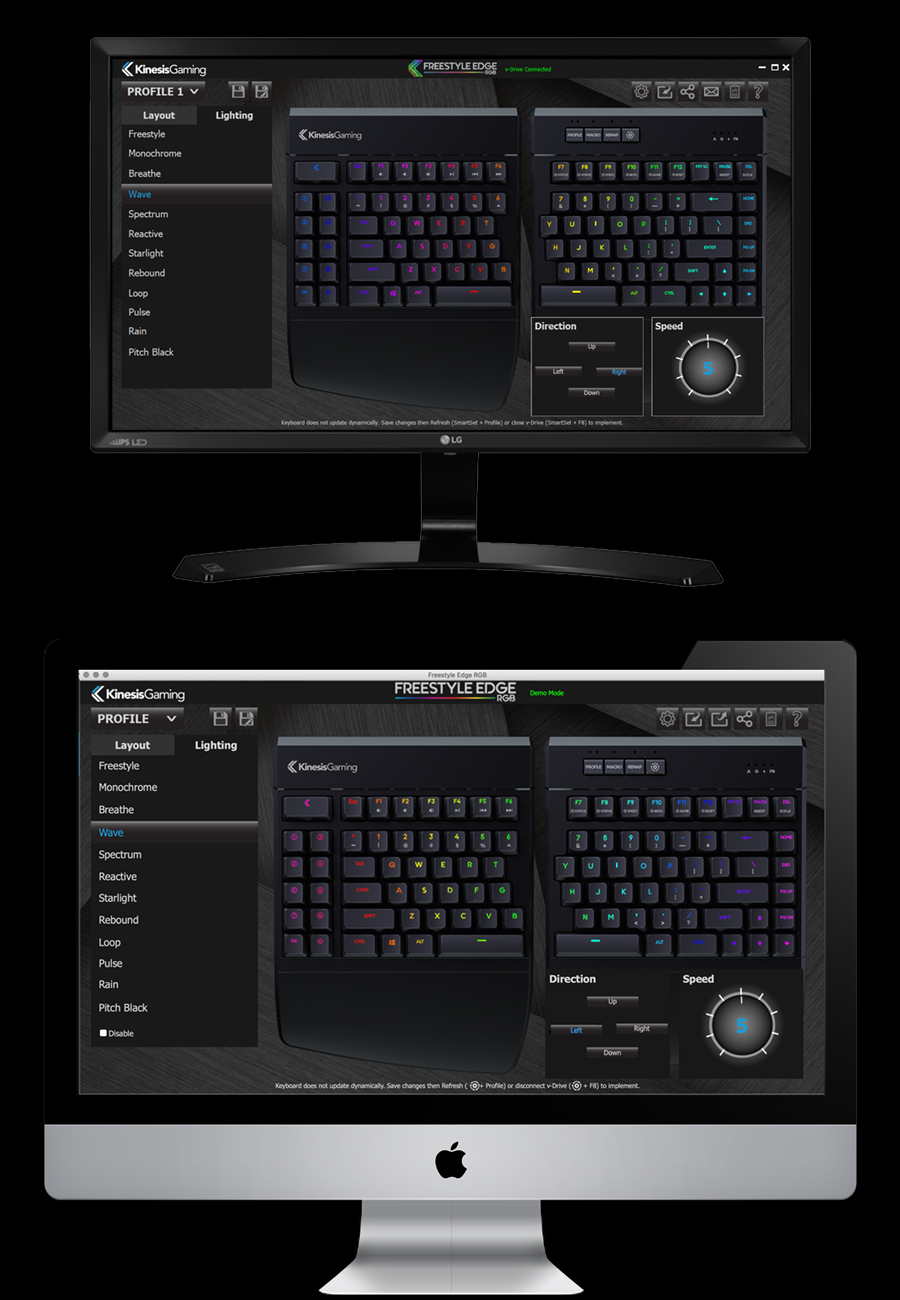

SmartSet APP Interface for Ease of Programming
SmartSet APP Interface for Ease of Programming

Freestyle Edge RGB Split Mechanical Gaming Keyboard
Freestyle Edge RGB Split Mechanical Gaming Keyboard

Technical Specifications
  • Width: 15.5" (39.4 cm)
  • Depth (front-to-back): 7.25" (18.4 cm) , 10.25" (26 cm) with palm supports
  • Height: 1.25" (3.2 cm)
  • Weight: 2.8 lbs (1.27 kg)
  • Keyswitch Type: Mechanical CHERRY MX Switches (3 options available)
    Cherry MX Blue Switches, 50 gram tactile activation force with high audible click
    Cherry MX Brown Switches, 45 gram tactile activation force with audible click
    Cherry MX Red Switches, 45 gram linear activation force
  • Keyswitch Rating: 50 million actuations
  • Key Travel Distance: 3.75 mm (blue) 4.00 mm (brown/red)
  • Number of Keys: 95 (tenkeyless design with standard US ANSI key layout)
  • Key Pitch: 0.75" (1.9 cm)
  • Legends: Etched with Fully Addressable RGB Backlighting.
  • RGB Backlighting: Fully Addressable - Per KEY (requires SmartSet APP - available for MAC OS or Win 7-10) RGB, 9 preset custom modes (each of the keyboard's 9 profiles are pre-programmed with a separate custom mode), and can be turned off and on with a single keystroke. In addition there is a Pitch Black mode which also turns off all indicator lights. All keys can be individually programmed with colour, direction and speed - enabling users to create customized lighting effects for each of the 9 pre-programmed profiles.
  • Length of Heavy Duty Braided Linking Cable: 20" (50.8 cm) - Adjustable Length
  • Interface: USB, 6' Heavy Duty Braided Cable
  • Compatibility:
    Plug & Play Functionality:
    • Windows 7-10
    • Mac OS X 10.6+
    • Chrome OS
    • Linux

    SmartSet Programming App (required to customize Lighting Effects)
    • Windows 7-10
    • Mac OS X 10.4+
  • Warranty: 2 Years
  • Package Contents: Freestyle Edge RGB Split Mechanical Gaming Keyboard, Detachable Cushioned Palm Supports, Quick Start Guide
Models
For pricing, availability or to order this product, visit our online store.
Model #DescriptionPrice
KB975-BLU Kinesis Freestyle Edge RGB Split Mechanical Gaming Keyboard, Cherry MX Blue Switches Add a Vektor RGB Gaming Mouse (PD9VEK) and get a $20 Instant Rebate (applied at time of payment) 295.00
KB975-BRN Kinesis Freestyle Edge RGB Split Mechanical Gaming Keyboard, Cherry MX Brown Switches Add a Vektor RGB Gaming Mouse (PD9VEK) and get a $20 Instant Rebate (applied at time of payment) 295.00
KB975-RED Kinesis Freestyle Edge RGB Split Mechanical Gaming Keyboard, Cherry MX Red Switches Add a Vektor RGB Gaming Mouse (PD9VEK) and get a $20 Instant Rebate (applied at time of payment) 295.00
Accessories
Model #DescriptionPrice
AC910 Lift Kit Accessory for Freestyle Edge, One Pair, Black35.00
AC930 Freestyle V3 Pro Accessory Kit, Black35.00
AC210USB-BLK Low Force Tactile Numeric Keypad, Black, for PC82.50
KC950WAR-BLK Textured Key Kit, WASD and 4 Arrow Keys, ABS Backlit Double Shot Rubberized Key Caps, includes Keycap Puller - Black27.50
KC950WAR-GRN Textured Key Kit, WASD and 4 Arrow Keys, ABS Backlit Double Shot Rubberized Key Caps, includes Keycap Puller - Green27.50
KC950WAR-HBL Textured Key Kit, WASD and 4 Arrow Keys, ABS Backlit Double Shot Rubberized Key Caps, includes Keycap Puller - Hyper Blue27.50
KC950WAR-NVY Textured Key Kit, WASD and 4 Arrow Keys, ABS Backlit Double Shot Rubberized Key Caps, includes Keycap Puller - Navy Blue27.50
KC950WAR-RED Textured Key Kit, WASD and 4 Arrow Keys, ABS Backlit Double Shot Rubberized Key Caps, includes Keycap Puller - Red27.50
CB950-84 Kinesis Extra Long Linking Cable Accessory for Freestyle Edge keyboard, supports 65" - 74" of separation75.00
MP8040 Kinesis XL Mouse Pad, 80 cm x 40 cm, Black50.00
FP30A Savant Elite2 Triple Action Foot Pedal230.00
PD9VEK Vektor RGB Gaming Mouse Add a Freestyle Edge Split Keyboard (KB950-XXX) and get a $20 Instant Rebate (applied at time of payment) 62.50
